R•pod

R•pod Travel Trailers

The r•pod is the first of its kind to offer you affordable luxury at the lowest tow weight in its class. The r•pod is a perfect example of “form follows function,” with its unique shape and construction!

2019 R·POD MODELSRP
179
RP
180
UNLOADED VEHICLE WEIGHT27562662
HITCH WEIGHT292332
LOAD CAPACITY10361170
EXTER LENGTH W/O SPARE TIRE20'0"20'0"
EXTERIOR POD WIDTH6'5"6'5"
EXTERIOR OVERALL WIDTH8'0"8'0"
EXTERIOR HEIGHT8'8"8'8"
EXTERIOR HEIGHT W/ A/C9'7"9'7"
LP CAPACITY (LBS)2020
FRESH WATER (GAL)3636
GREY WATER (GAL)3030
BLACK WATER (GAL)3030
2018 R·POD MODELSRP
178
RP
189

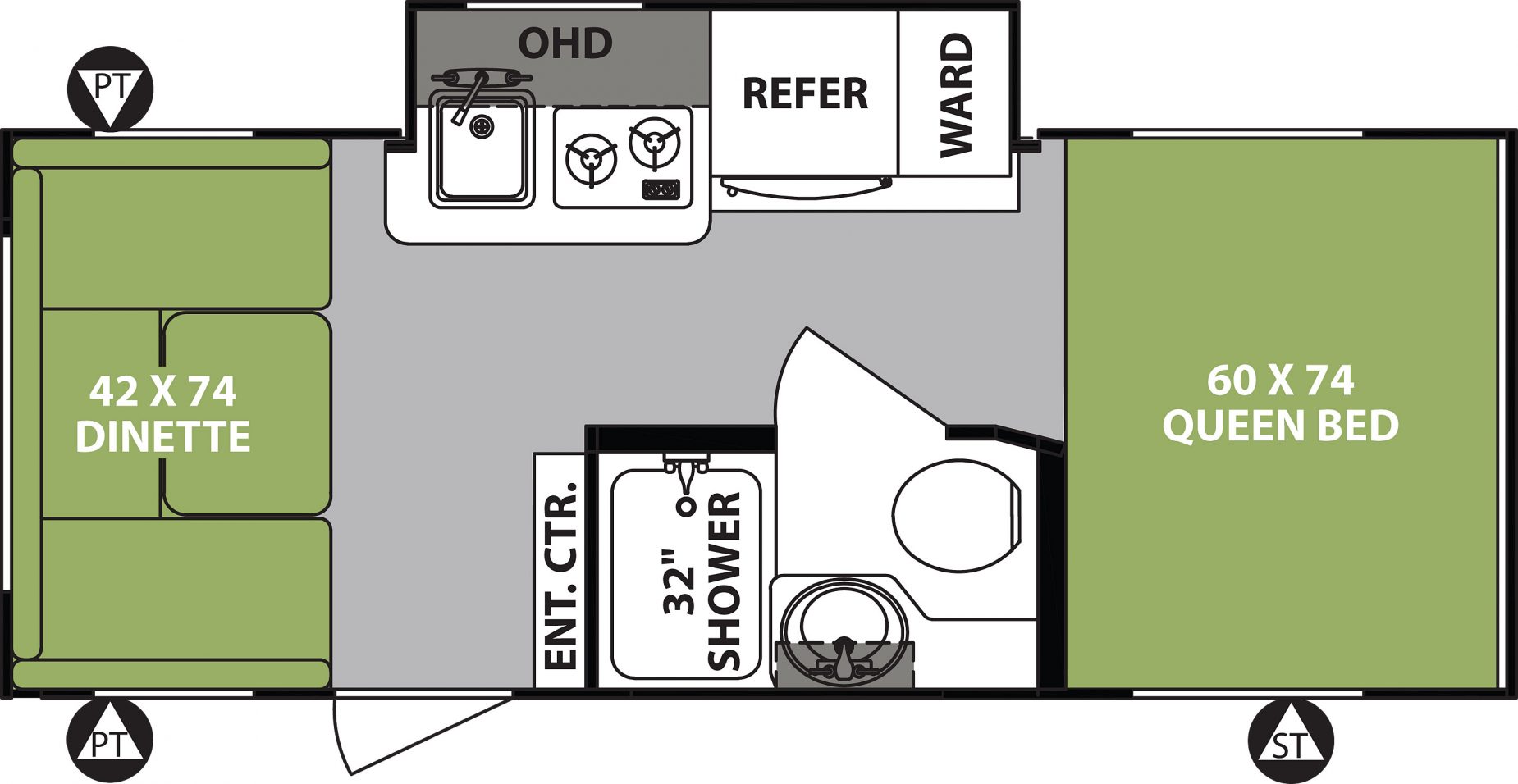

RP
190
UNLOADED VEHICLE WEIGHT260327732766
HITCH WEIGHT268281336
LOAD CAPACITY11659891051
EXTER LENGTH W/O SPARE TIRE20'0"20'4"20'4"
EXTERIOR POD WIDTH6'5"6'5"6'5"
EXTERIOR OVERALL WIDTH8'0"8'0"8'0"
EXTERIOR HEIGHT8'8"8'8"8'8"
EXTERIOR HEIGHT W/ A/C9'7"9'7"9'7"
LP CAPACITY (LBS)202020
FRESH WATER (GAL)363636
GREY WATER (GAL)303030
BLACK WATER (GAL)303030
2016 R·POD MODELSRP
183G
UNLOADED VEHICLE WEIGHT2765
HITCH WEIGHT300
LOAD CAPACITY1035
EXTER LENGTH W/O SPARE TIRE20'0"
EXTERIOR POD WIDTH6'5"
EXTERIOR OVERALL WIDTH8'0"
EXTERIOR HEIGHT8'8"
EXTERIOR HEIGHT W/ A/C9'7"
LP CAPACITY (LBS)20
FRESH WATER (GAL)36
GREY WATER (GAL)30
BLACK WATER (GAL)30



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
