2023 Surveyor Travel Trailers
As with every series designed by Surveyor, a premium is placed on superior craftsmanship and unmatched value. By combining lightweight floor plans and efficient design. Surveyor boasts the use of Azdel in our construction, XTRM ply PVC roofing, large exterior storage and pet friendly features just to name a few. Surveyor delivers superior camping comfort. No need to make sacrifices while you travel.
2023 Features
Legend X
- MORryde Step Above Entry Step
- Forced Air Heated & Enclosed Underbelly
- Azdel Composite Wall Panels
- Tire Pressure Monitoring System
- Updated Shower Enclosure
- Central Vacuum System
- 60×80 Residential Queen Bed
- 80 Watt Go Power Solar Panel & Controller
- Walk-On Roof with PVC Membrane
- 10 Cu. Ft. 12V Refrigerator (WC- Opt. 8 Cu. Ft. G/E)
Sub-4,000 Lb.
- MORryde Step Above Entry Step
- Forced Air Heated & Enclosed Underbelly
- Azdel Composite Wall Panels
- 60×80 Residential Queen Bed
- Tire Pressure Monitoring System
- 15,000 BTU A/C
- 10 Cu. Ft. 12V Refrigerator (WC- Opt. 8 Cu. Ft. G/E)
- Convection Microwave
- Upgraded Shower Enclosure

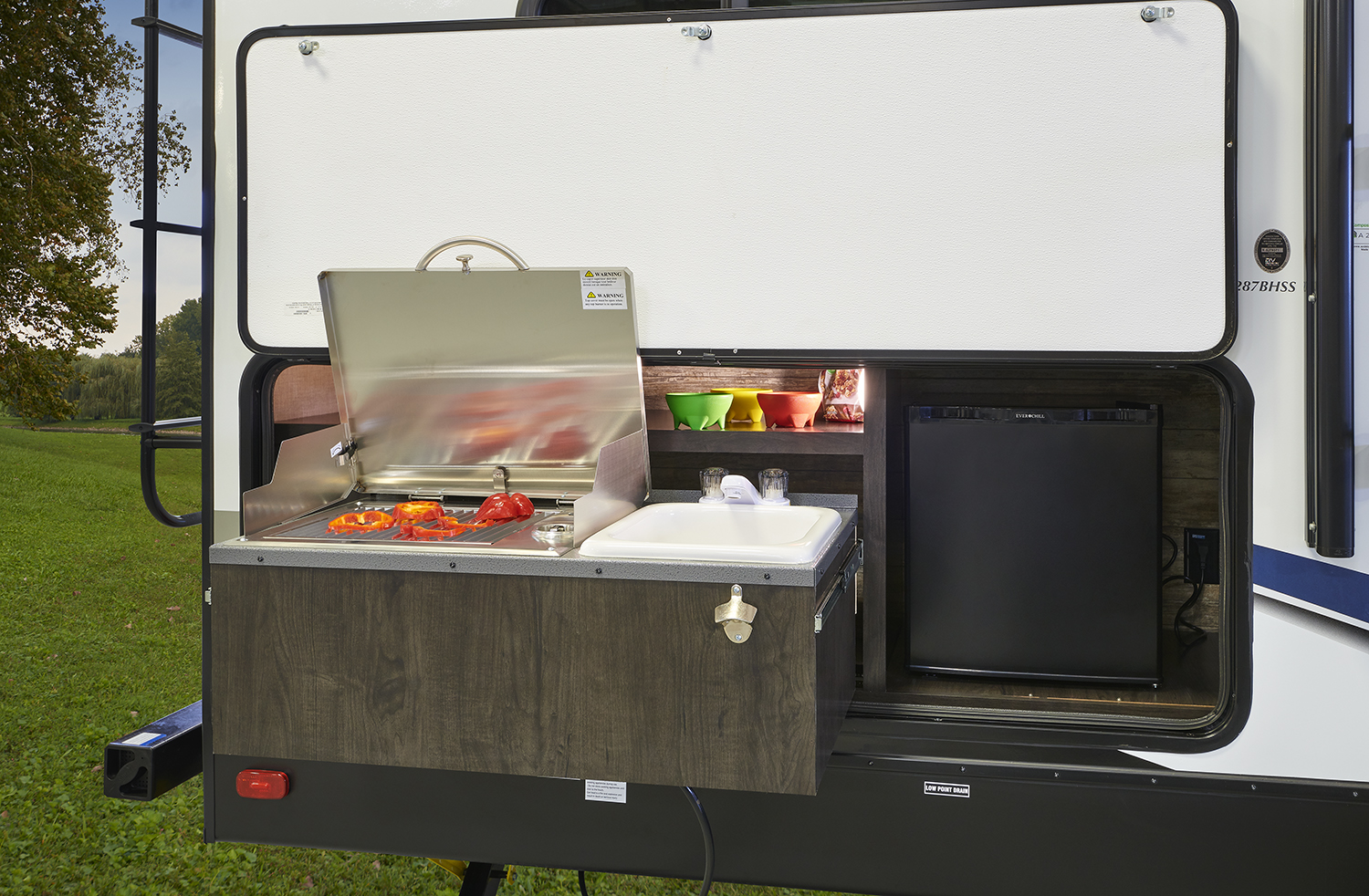

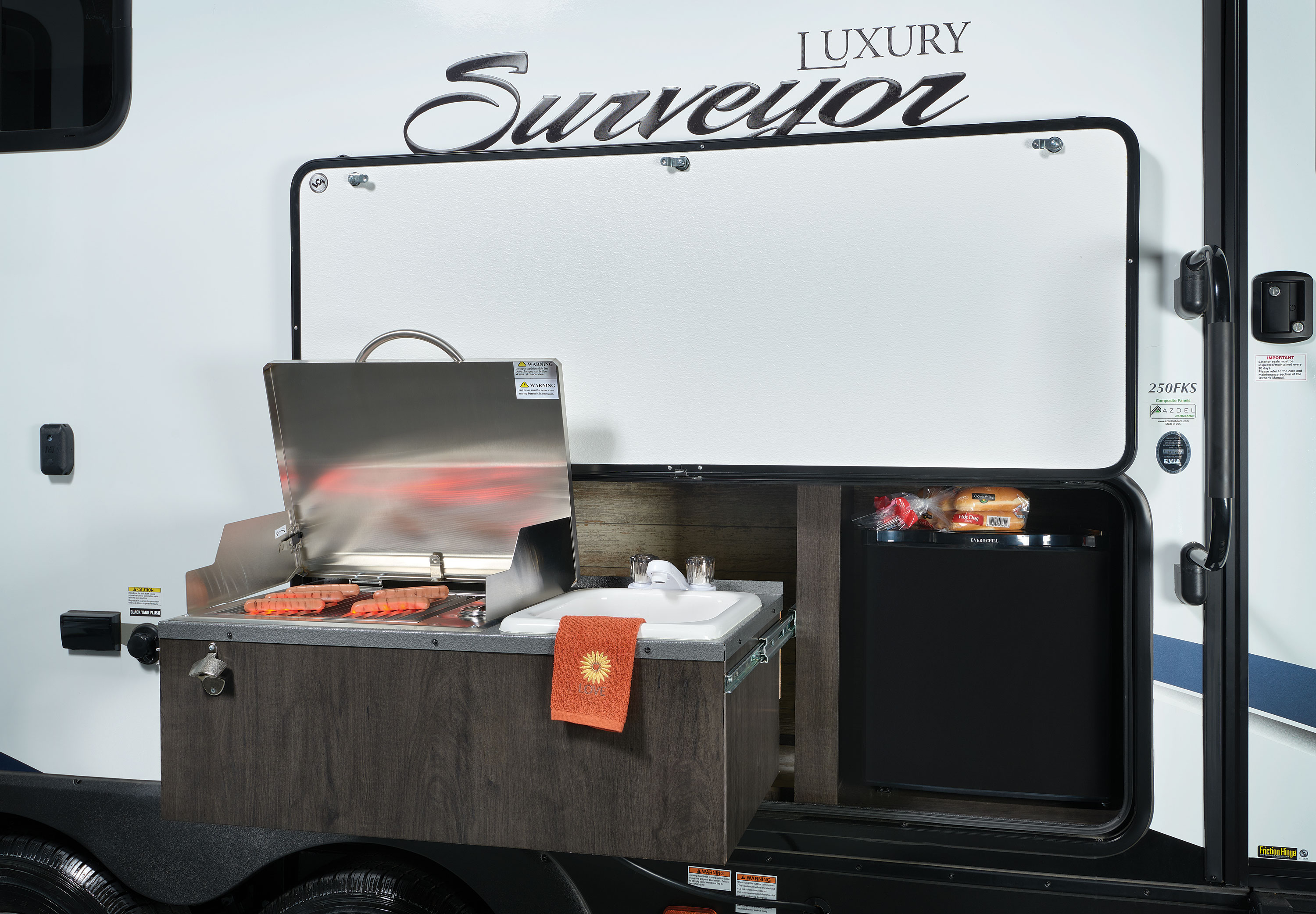

- Outside Kitchen
- Central Vacuum System
- 80 Watt Go Power Solar Panel & Controller
- Walk-On Roof With PVC Membrane
Legend
- MORryde Step Above Entry Step
- Forced Air Heated & Enclosed Underbelly
- Azdel Composite Wall Panels
- 60×80 Residential Queen Bed
- Front Passthrough Storage with Motion Lights
- Tire Pressure Monitoring System
- 15,000 BTU A/C
- 10 Cu. Ft. 12V Refrigerator (WC- Opt. 8 Cu. Ft. G/E)
- Upgraded Shower Enclosure
- Outside Kitchen
- Central Vacuum System
- 80 Watt Go Power Solar Panel & Controller
- Walk-On Roof With PVC Membrane
Grand Surveyor
- MORryde Step Above Entry Step
- Forced Air Heated & Enclosed Underbelly
- Azdel Composite Wall Panels
- 60×80 Residential Queen Bed

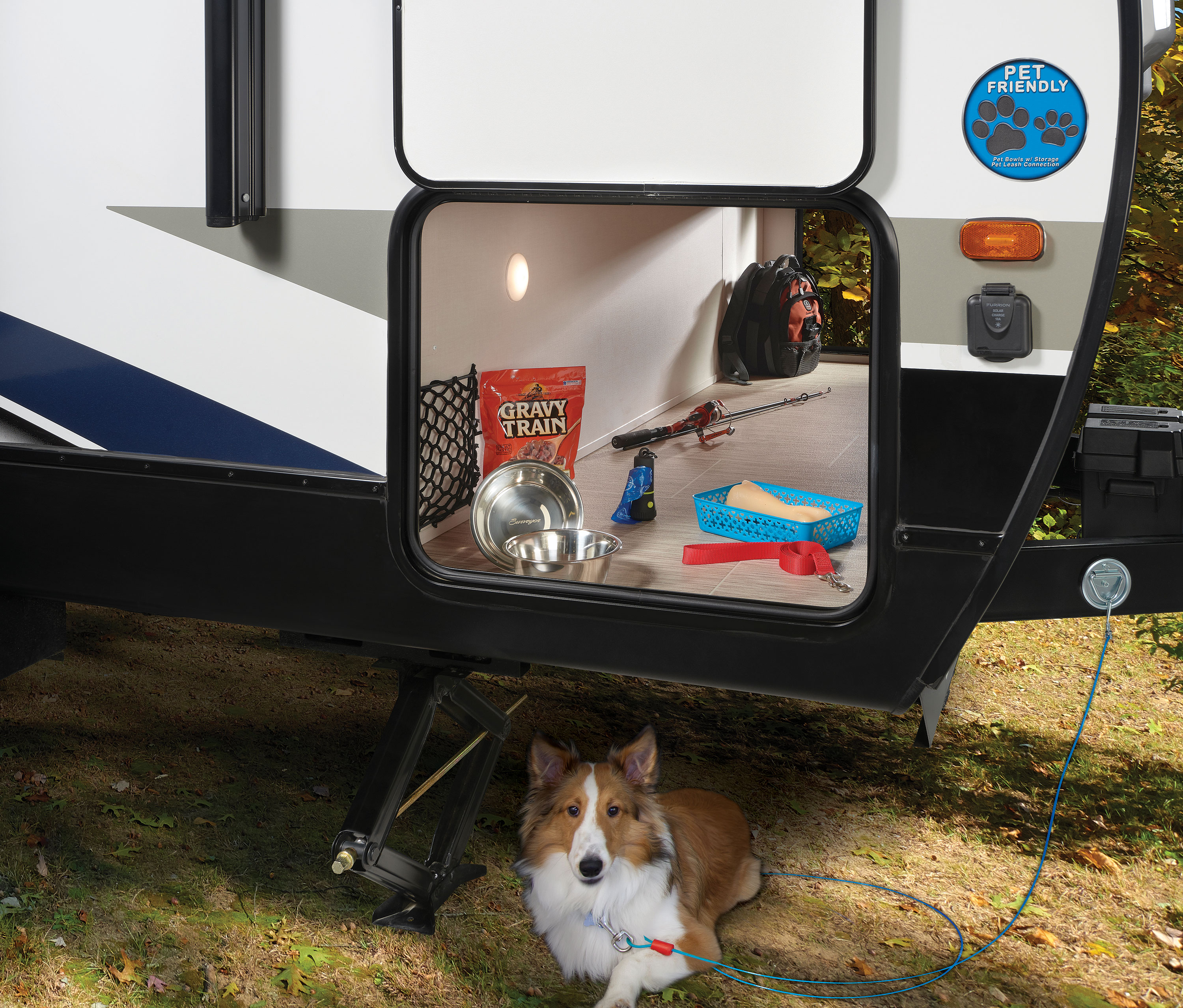

- Front Passthrough Storage with Motion Lights
- Tire Pressure Monitoring System
- Premium Window Treatments
- 15,000 BTU A/C
- 10 Cu. Ft. 12V Refrigerator (WC- Opt. 8 Cu. Ft. G/E)
- Upgraded Shower Enclosure
- Outside Kitchen
- Electric Fireplace
- Central Vacuum System
- 80 Watt Go Power Solar Panel & Controller
- Walk-On Roof With PVC Membrane
- Fold-Down Cargo Rack
| 2023 Surveyor Legend X | 17RBLX |
|---|---|
| UNLOADED VEHICLE WEIGHT | 3,884 |
| CARGO CARRYING CAPACITY | 896 |
| HITCH WEIGHT | 380 |
| OVERALL LENGTH | 23' 1" |
| EXTERIOR HEIGHT W/ A/C | 10' 9" |
| FRESH WATER (GAL) | 30 |
| GREY WATER (GAL) | 30 |
| BLACK WATER (GAL) | 30 |
| 2023 Sub-4,000 Lb. | 19BHLE | 19MBLE | 19MDBLE | 19RBLE |
|---|---|---|---|---|
| UNLOADED VEHICLE WEIGHT | 3,777 | 3,854 | 4,081 | 3,917 |
| CARGO CARRYING CAPACITY | 1,031 | 916 | 770 | 932 |
| HITCH WEIGHT | 408 | 390 | 470 | 449 |
| OVERALL LENGTH | 23' 7" | 23' 4" | 23' 7" | 23' 7" |
| EXTERIOR HEIGHT W/ A/C | 10' 9" | 10' 9" | 10' 9" | 10' 9" |
| FRESH WATER (GAL) | 30 | 30 | 30 | 30 |
| GREY WATER (GAL) | 30 | 30 | 30 | 30 |
| BLACK WATER (GAL) | 30 | 30 | 30 | 30 |
| 2023 Surveyor Legend | 202RBLE | 203RKLE | 240BHLE | 252RBLE | 276BHLE | 296QBLE | 303BHLE |
|---|---|---|---|---|---|---|---|
| UNLOADED VEHICLE WEIGHT | 4,931 | 5,030 | 5,113 | 5,313 | 6,358 | 6,806 | 7,743 |
| CARGO CARRYING CAPACITY | 2,566 | 2,547 | 2,432 | 2,277 | 1,292 | 2,796 | 1,917 |
| HITCH WEIGHT | 497 | 577 | 545 | 590 | 650 | 804 | 860 |
| OVERALL LENGTH | 25' 1" | 25' 1" | 26' 6" | 29' 7" | 32' 6" | 35' 1" | 37' 11 |
| EXTERIOR HEIGHT W/ A/C | 11' 3" | 11' 3" | 11' 3" | 11' 3" | 11' 3" | 11' 3" | 11' 3" |
| FRESH WATER (GAL) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| GREY WATER (GAL) | 40 | 40 | 30 | 40 | 40 | 40 | 60 |
| BLACK WATER (GAL) | 30 | 30 | 30 | 30 | 30 | 30 | 60 |
| 2023 Grand Surveyor | 253RLS | 263RKSS | 267RBSS |
|---|---|---|---|
| UNLOADED VEHICLE WEIGHT | 6,368 | 6,413 | 6,063 |
| CARGO CARRYING CAPACITY | 1,447 | 1,292 | 1,552 |
| HITCH WEIGHT | 815 | 705 | 615 |
| OVERALL LENGTH | 31' 9" | 30' 10" | 30' 7" |
| EXTERIOR HEIGHT W/ A/C | 11' 3" | 11' 3" | 11' 3" |
| FRESH WATER (GAL) | 40 | 40 | 40 |
| GREY WATER (GAL) | 40 | 60 | 60 |
| BLACK WATER (GAL) | 30 | 30 | 30 |
GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.
GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.
UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.
The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
2023 Surveyor X 17RBLX
2023 Surveyor Sub-4,000 lb. 19MDBLE
2023 Surveyor Sub-4,000 lb. 19MBLE
2023 Surveyor Sub-4,000 lb. 19MDBLE

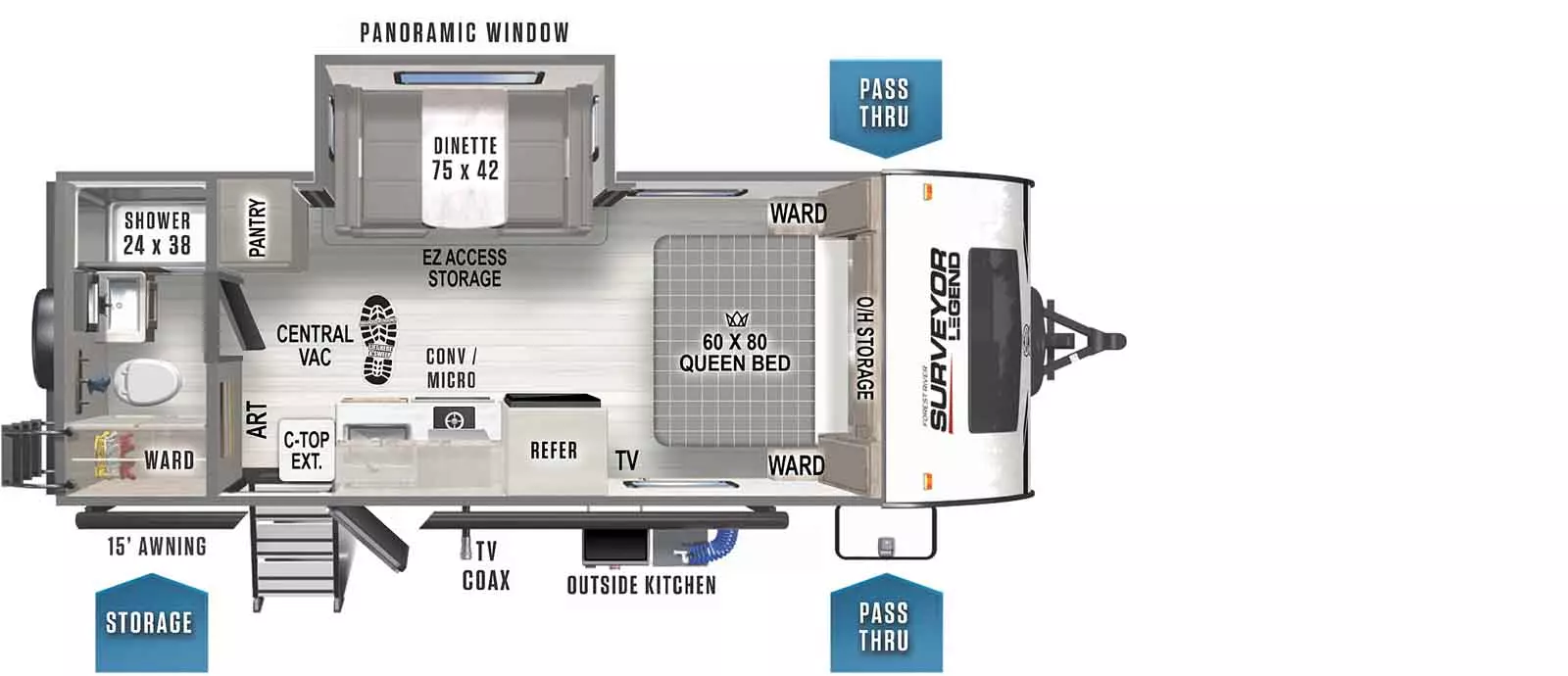

2023 Surveyor Sub-4,000 lb. 19RBLE
2023 Surveyor Legend 202RBLE
2023 Surveyor Legend 252RBLE
2023 Surveyor Legend 276BHLE
2023 Surveyor Legend 296QBLE
2023 Surveyor Legend 303BHLE
2023 Grand Surveyor 267RKSS

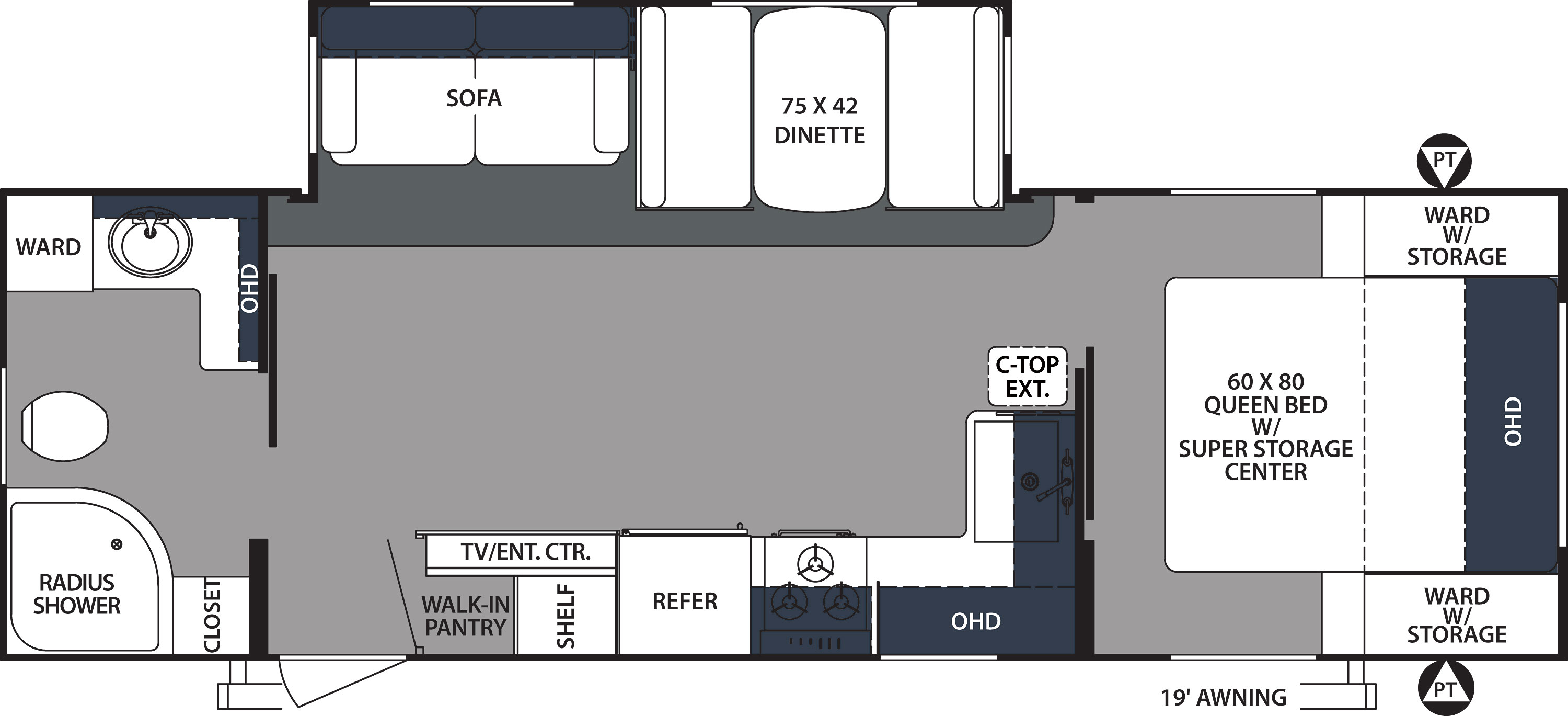

2023 Grand Surveyor 267RBSS
2023 Grand Surveyor 253RLS
